Monitor Audio CP-WT460x In Wall Speaker each
$2,150.00
CP-IW460X

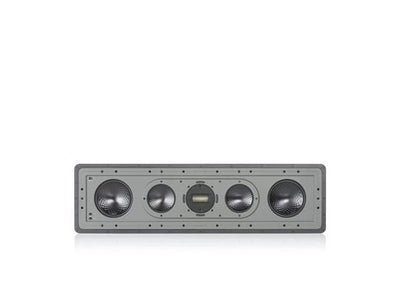

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.
The CP-IW460X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material with RST (Rigid Surface Technology) deployed in dual 6.5” bass drivers and twin 4” mids astride a high frequency, air motion ribbon tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet with die-cast Aluminium baffle.
This product is now available to use with home theatre design software, The Cinema Designer. Read more.
Technology

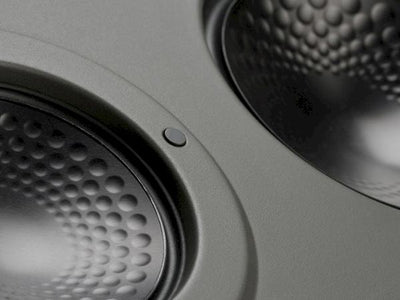

- Dual 6.5” C-CAM bass drivers featuring RST ‘dimpled’ cone technology
- Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations
- Dual 4” C-CAM mid-range drivers featuring RST ‘dimpled’ cone and underhung voice coil technologies

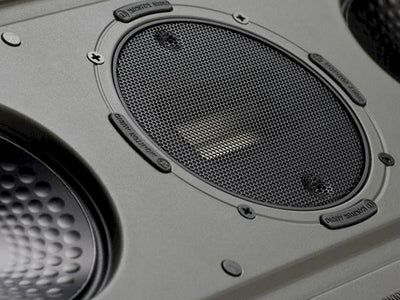

- C-CAM Ribbon High Frequency transducer

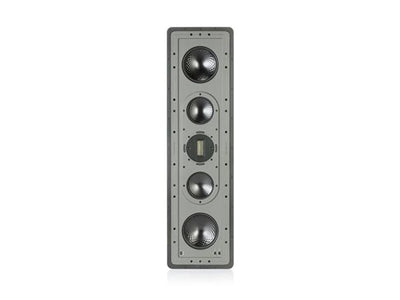

- Innovative HF rotating system to facilitate portrait or landscape orientation

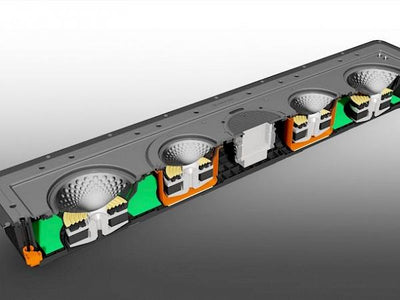

- Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
- Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
- High overall efficiency and maximum SPL for powerful home theatre installations
- High power handling
- Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
- High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
- Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
- Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
- Paintable grille to blend with the living environment
Frequency Response
5 0Hz - 60 kHz (-6 dB typical in room response)
Nominal Impedance
6Ω
Sensitivity (1W@1M)
89 dB
Maximum SPL
113.8 dBA
Power Handling (RMS)
150 W
Recommended Amplifier Requirements
60 - 150 W
Crossover Frequency
L.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 KHz @ 18 dB/Octave H.F - 3 KHz @ 18 dB/Octave
Drive Unit Complement
2 x 6.5” C-CAM® Bass drivers with RST® cone technology
2 x 4” C-CAM Mid-range drivers with RST cone technology
1 x C-CAM H.F ribbon transducer
Adjustment Controls
Boundary Compensation (On/Off)
MF Level: +1/0/-1 (dB)
HF Level: +1/0/-1 (dB)
Overall Dimensions (H x W x D)
907 x 257 mm (35 3/4” x 10 1/8”)
Overall Depth (Including Grille)
102 mm (4”)
Cut-Out Dimensions
880 x 230 mm ( 34 21/32” x 9”)
Mounting Depth
96 mm (3 3/4” )
Fixing Type
10 x Tri-Grip® Dog leg fixings
Construction Material
Cast Polymer enclosure with die-cast Aluminium baffle (RoHS2 Compliant)
Weight
12.98 kg (28lb 6oz)
