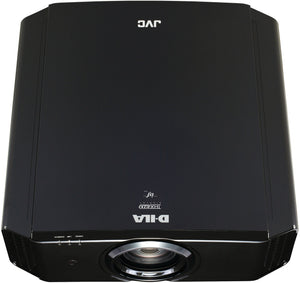

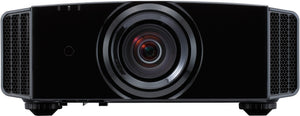

JVC DLA-X9500B

Features

• NSH 265W
• Connectors: HDMI x 2 (3D, Deep Colour/HDCP 2.2), RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini DIN)
• Exceptionally bright 2,000 lm achieved with 265W high-output NSH lamp
• Resolution: 3840 x 2160 (in 2D)*; 1920 x 1080 (in 3D)
• 6th generation 0.7" Full HD D-ILA (1920 x 1080) device x 3
• 4K resolution (3840 x 2160) achieved with e-shift 4 Technology including Multiple Pixel Control image processor*
• 4K signal input (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)
• 4K Projection (3840 x 2160 pixels*) achieved with optical engine featuring e-shift 4 Technology with Multiple Pixel Control image processor
• Ultimate dynamic contrast ratio of 1,600,000:1 and native contrast ratio of 160,000:1 achieved with original D-ILA device and the high-output lamp
• For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received

• Pixel Adjust function allows user to precisely correct colour deviation in 1/16-pixel increments; also segments the screen into 121 points for individual adjustment. Two customized settings can be stored in the memory.
• Screen Adjustment Modes: 136 modes
• Lens Memory function (10 memories)
• 12-point manual gamma adjustment included in Auto-Calibration Software
• Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
• Colour Management System with 6-axis Matrix
• Auto-Calibration Function using an optical sensor** is capable of optimizing essential elements in the image, including colour balance, gamma characteristics, colour space and colour tracking
• THX 3D Display Certification to ensure the precise reproduction of picture quality in 2D and 3D content, just as the original filmmaker envisioned.
• ISF C3 (Certified Calibration Controls) mode*** to reproduce excellent picture quality optimized for specific environments.
• Automatic Lens Cover
• Xenon lamp colour temperature
• Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
• *Resolution is 1920 x 1080 at 3D mode **Exclusive JVC software installed in PC and optical sensor are required. Please visit the JVC website for details. ***Professional calibration to desired screen is performed by trained dealers
• Original Real Colour Imaging Technology has adopted a new filter capable of covering the DCI (digital cinema initiatives) colour space for true-to-the-source beautiful 4K images
• Motion Enhance technology reduces residual images and blurring that are often found in fast-moving images by optimally controlling the drive of D-ILA devices
• Complies with the latest HDMI/HDCP 2.2 standard to enable full spec 4K signal input up to 4K60P 4:4:4
• To match the trends towards higher resolution and to deliver immersive high-definition 4K images, Multiple Pixel Control has been improved with a new analysis algorithm capable of more accurate diagonal-detection between frames for full HD and 4K resolution signals.
• Clear Motion Drive compatible with signals up to 4K60P 4:4:4, can reproduce moving images without ghosting or afterimage issues
• Compatible with Hybrid Log-Gamma that will come into use for broadcasting applications
• Technical Specifications

DLA-X9500B - D-ILA Projector
