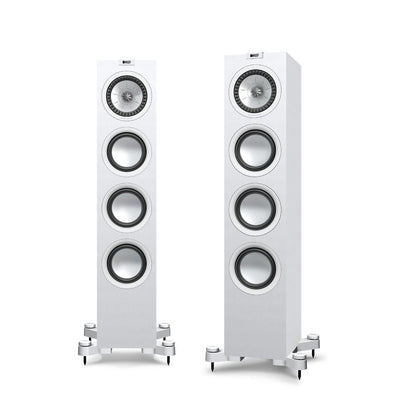

Q550 is the smallest size among the Q Series floorstanders. Featuring the KEF signature Uni-Q driver array paired with a 130mm (5.25 inch) aluminium bass driver and two matching ABRs, Q550 delivers a phenomenal audiophile performance with clarity and more controlled bass.
"Sit anywhere" Uni-Q sound
At the heart of the evolved Q Series is the Uni-Q driver array. The signature innovation places the tweeter in the acoustic centre of the midrange and bass cone, bringing the acoustic ideal of a single point source closer than ever to realisation. The result is a more detailed, accurate three-dimensional sound image, which is dispersed more evenly throughout the room than is possible with any conventional speaker. Uni-Q's ultra-wide dispersion is further enhanced through KEF's 'tangerine' waveguide over the tweeter dome.
Damped tweeter loading tube
With the addition of the damped tweeter loading tube providing a gentle termination of sound produced from the back of the tweeter, lower treble performance is improved dramatically and a new low-distortion inductor on the crossover provides cleaner bass.
New system design
The closed box midrange cabinet design reduces the load on the Uni-Q midrange cone, increasing clarity and detail while delivering cleaner, punchier bass. Midrange clarity is enhanced again through improvements to the mid-bass driver that allowed the DC blocking capacitor to be eliminated. Its removal also created a more natural bass roll-off between the drivers.
Beefier LF drivers and ABRs
Low-frequency (LF) drivers now have a larger roll surround, along with a new suspension to produce cleaner bass at high volumes. A new cone structure improves midrange clarity, and an enhanced Auxiliary Bass Radiator (ABR) with a new surround and rear suspension delivers better controlled and more impressive bass.
Q Series Brochure
Q Series Information Sheet
Q Series User Manual
Specifications
MODEL |
Q550 |
DESIGN |
Two and a half-way bass reflex |
DRIVE UNITS |
130mm (5.25in.) aluminium Uni-Q 25mm (1in.)vented aluminium dome HF 130mm (5.25in.) aluminium LF 2 x 130mm (5.25in.)aluminium ABR |
FREQUENCY RANGE FREE FIELD |
45Hz (-6dB) |
FREQUENCY RESPONSE |
58Hz-28kHz (±3dB) |
CROSSOVER FREQUENCIES |
2.5kHz |
MAXIMUM OUTPUT |
110dB |
AMPLIFIER REQUIREMENTS |
15-130W |
SENSITIVITY |
87dB (2.83V/1m) |
NOMINAL IMPEDANCE |
8 Ohms (min.3.5 Ohms) |
DIMENSIONS |
H x W x D: 873 x 180 x 278 mm 926 x 299 x 310 mm (with Plinth) |
WEIGHT |
14.5kg (32 lbs) |
UNIT MEASUREMENT |
Pair |
