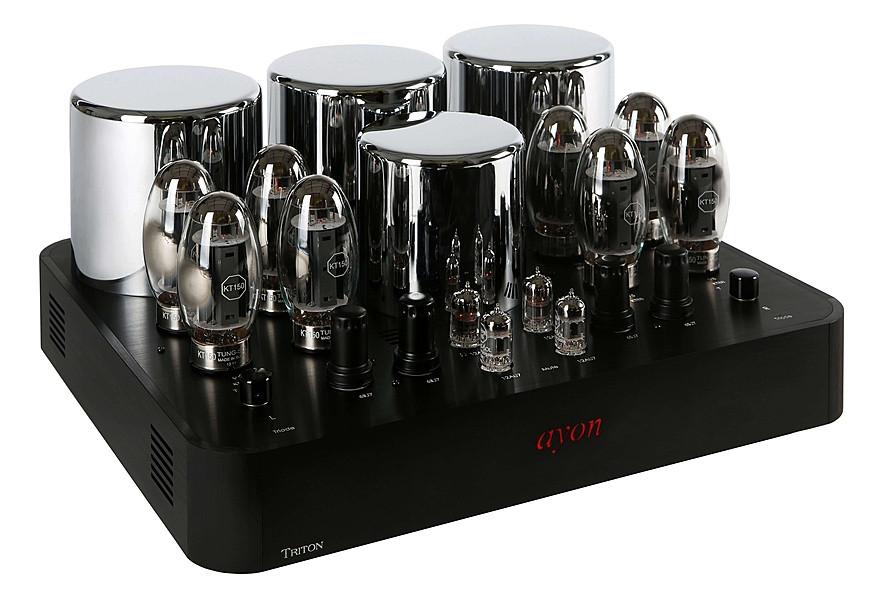

Ayon Audio Triton PA Power Amplifier

Ayon Audio

We are proud to introduce a new generation of fully balanced designed KT150 stereo power amplifier, the Triton.  The result is a significant advance in sonic performance, wider and deeper soundstage with greatly improved powerful bass punch and dynamics. Musical finesse with very fine details and superb powerful performance has been combined without compromise into one convenient chassis and affordable pricing. Compared with many top grade power amplifiers, the Triton is a mid-priced unit, but we are confident that value and musical performance is approached by few KT150 designs only, regardless of cost.

Full-featured true balanced tube stereo power amplifier
Switchable between pentode and triode mode
Ideal also for more difficult loudspeaker loads

Vacuum Tubes
The choice of signal and power tubes have a significant influence on the sound and hence on the inspiration and joy of listening. This is not only the decision between good and bad tubes but finally the interaction of the different types of tubes and their combination that are used in the various Ayon amplifiers.

Signal Path
We believe that the simplest circuits work best together with the shortest signal path. The shorter the signal path is, the less possibility of sonic degradation from various sources, including the wire itself. Even on the circuit boards, the copper traces are kept to a very minimum length. The completely redesigned circuit board provides a more straightforward and direct approach to the signal paths.

  • Logical sequenced soft-start power up for extended tube life
  • Power tube and electronic protection circuit system 0dB negative feedback  (of any kind )
  • Ultra short signal path
  • Simplest direct circuit path for purest musical sound and high reliability
  • No solid state devices in the signal path
  • High current and low impedance design that operates tubes in the best areas their curves
  • Minimal discrete wiring for optimum signal propagation
  • Automatic and manual bias adjustment
  • No followers or buffers in the signal path
  • High quality parts throughout
  • Selector switch engages relays located near RCA jacks to switch all inputs

Power Supply
The power supplies have been further refined with new components and enhanced AC line noise filtration. Separate power transformers, chokes and filters provide total isolation between the input and output stages which makes this a pure power source. We also use electrolytic capacitors with much larger storage capacity to make up for the loss in filtering when using resistors in lieu of inductors.

  • 2 separate low noise –insulated power transformers
  • Power transformers are encased, excellent damped and RFI/EMI shielded
  • Innovative power supply provides a high speed energy delivery on transients
  • Dual choke filtered power supply for power tubes
  • Choke for pre and driver stage
  • Separate and isolated power supplies over each stage of amplification
  • Regulated DC filament supplies with soft start
  • AC power line filter to avoid noise and hash from entering into the unit.
  • High capacitance energy storage.
  • Current in-rush limiting
  • Auto sequencing - Power on cycle completes in 1 minute

Dual Grounding System
The modification of the grounding topology leads to increased rejection of noise from the power supply and other areas. The dual grounding topology used in all of our amplifiers is quite unique to the whole hi-end tube amplification industry. Such extensive topology provides for quieter backdrop for which the music can unfold in its entirety. It further establishes the quick and controlled bass response and the full bodied expression of the high frequency. The ground leg of the signal has not been neglected and given meticulous attention in its implementation. The importance of proper grounding cannot be over emphasized.

  • Ground switch
  • Central one-point star earth grounding
  • Dual grounding system (switchable)

Output Transformer
The super-wide bandwidth output transformer’s major strength is that it can deliver the current in the bass, while at the same time maintaining the speed in the high frequencies, dramatically improving the square wave response of the amplifier. The effect is a much more natural and relaxed sound with much better clarity, resolution and fluidity.

  • Super-wide bandwidth high performance output transformer
  • High efficiency with low insertion loss for optimal current and voltage transfer
  • Multiple tight layering and coupling for extended frequency response
  • Output transformers are sealed with an anti-resonance compound material

Components
The type of parts used therefore must have a synergistic relationship to the circuit they are placed in. It is this relationship of which type of part to use where, that ranks our products apart from the mass.

  • Selected, premium quality passive components used in all applications
  • High speed  & high quality audiophile grade coupling capacitors
  • Special tube sockets with beryllium- copper spring pins, custom made by Ayon
  • Ayon high quality – binding posts
  • High quality – RCA input jack
  • Neutrik/Swiss - XLR chassis connectors
  • Special isolated - internal wiring
  • Silver-copper matrix - internal signal cable
  • Gold-plated industrial grade PCB
  • All wiring to the circuit boards is done with the use of special pluggable pin- connectors.
  • This is done for easy of repair should ever the need arise.

High Grade Speaker Binding Posts
The new ayon gold plated solid body speaker binding posts provide performance levels that are truly in the very High End. The solid body construction ensures that there is no gap or breach in the flow of electrons. The gold plating provides for superior contact and resistance to oxidation. These binding posts are chosen primarily for their sonic performance, edging out even more expensive counterparts.

Mechanical Construction
The high grade aluminum chassis impart a richer, more lustrous tonality with a cleaner background and less hash and grain. All brushed anodized anti-vibration-resonance and non-magnetic chassis’s are fully hand assembled to insure the highest level of craftsmanship.

  • Improved heat ventilation chassis
  • The aluminium feet are resonance absorbing types
  • Backlit “ayon” logo
  • All front & rear panel descriptions are engraved
  • Ground switch
  • AC phase polarity control indicator
  • Chassis finish: black / chrome

Specifications

Amplifier

Ayon Triton PA

Class of Operation

Triode* or Pentode mode, Class-A*

Tube Complement

8 x KT150

Load Impedance

4 & 8 Ohms

Bandwidth

8Hz-70kHz

Output Power:Pentode mode

2 x 130 W

Output Power:Triode mode

2 x 75 W

Frequency Response

10 Hz - 60 kHz

Input Impedance at 1 kHz

100 KΩ

Input sensitivity (full power)

650mV

NFB

0dB

Remote Control

Yes

Inputs

1 x RCA IN, 1 x XLR IN

Outputs

1 x Pre Out

Dimensions (WxDxH) cm

51x42x25 cm

Weight

45 kg

Specifications subject to change without notice
