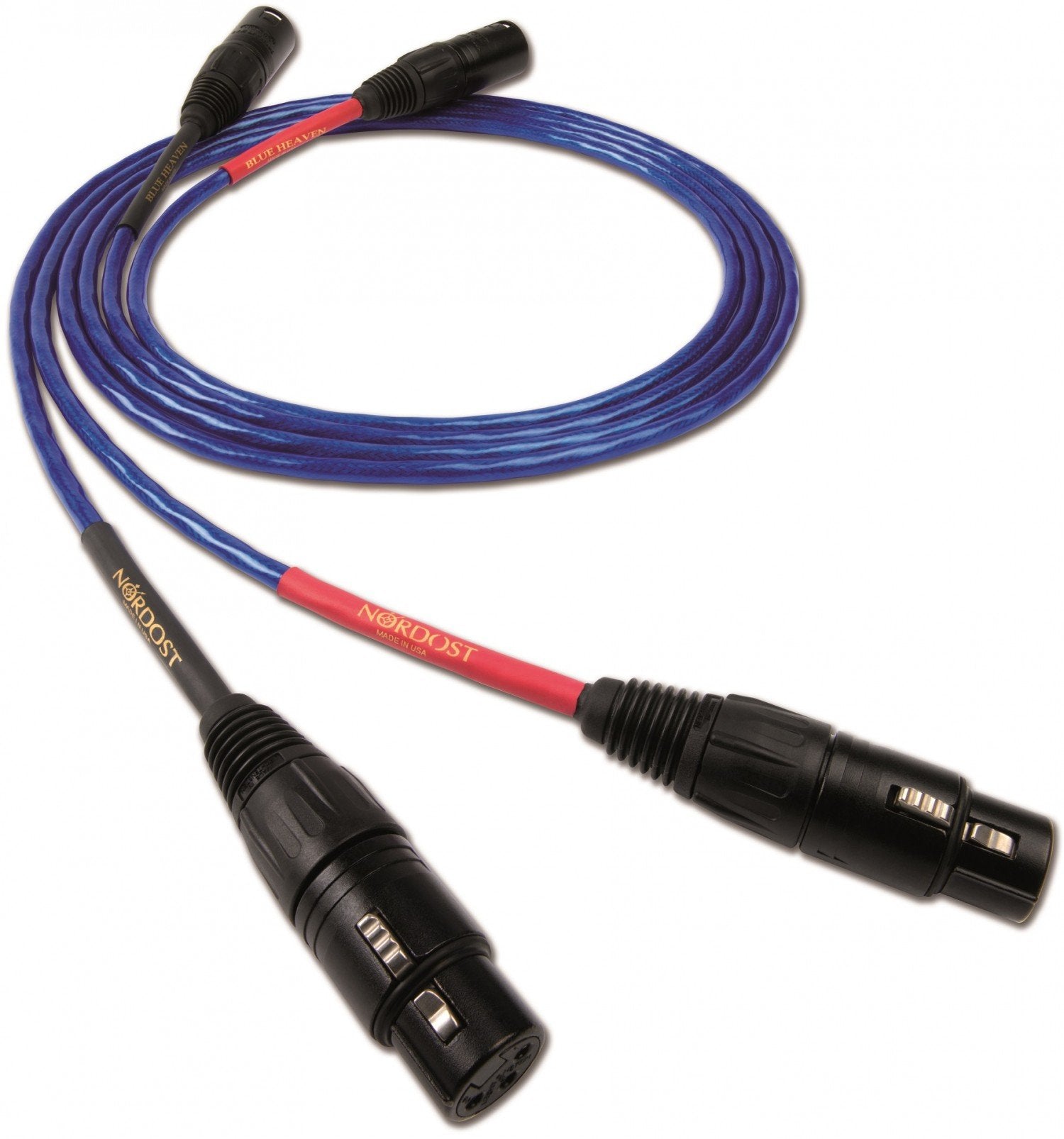

The Blue Heaven LS Analog Interconnect is a fully-shielded design that can be terminated for balanced or single-ended connection. It employs four, heavy-gauge 24 AWG, silver-plated 99.9999% OFC solid core conductors, precision wound in a minimum cross-section configuration that eliminates unnecessary fillers or padding elements. The insulation is high-grade FEP, selected for its superior dielectric performance, while the elegant minimalism extends to the carefully selected low-mass connectors and differential grounding. Like all Nordost cables, the Blue Heaven LS Analog Interconnect is manufactured and hand-terminated in the USA, enabling us to further guarantee consistent performance. The result is a high-speed, low-loss interconnect that preserves the sense of musical power and momentum, bringing believable shape and presence to performers, colour, life and drama to their performances.
SPECIFICATIONS
Insulation: | Fluorinated Ethylene Propylene (FEP) | |
Construction: | Mechanically tuned lay | |
Conductors: | 4 x 24 AWG | |
Material: | Silver-plated 99.9999% solid core OFC | |
Capacitance: | 45.0pF/ft | |
Inductance: | 0.046μH/ft | |
Overall Shield Coverage: | 95% | |
Velocity of Propagation: | 80% | |
Termination: | Gold-plated RCA or XLR |
